HYPER Product Page Content

Advanced Design, Simple Build

1. Flagship Hardware Fit - E-ATX to ITX. 450mm GPUs. 168mm coolers (NH-D15 confirmed). 360mm Radiators, ATX, SFX / SFX-L PSUs.

2. Simple BOM - 2.5kg of PETG, screws, USB ports, and a power button. That's it.

3. Formed, Not Assembled - Frame prints in 2 parts, not 20 — easy build, fewer joints, stronger structure. (4 parts for standard size printers)

4. Modular Flexibility - Build a NAS, a liquid cooling gaming rig, or a hybrid Workstation in between. Universal modules make it all possible within the same chassis.

5. Your Printer Does the Work - Interlocking joints and compliant mechanisms replace complex assembly. Single screw type throughout (BT3×20). Per-model tuned print files and instructions include

HYPER is the most advanced MODCASE to date — bigger builds, expandable construction, and more ways to configure than ever before.

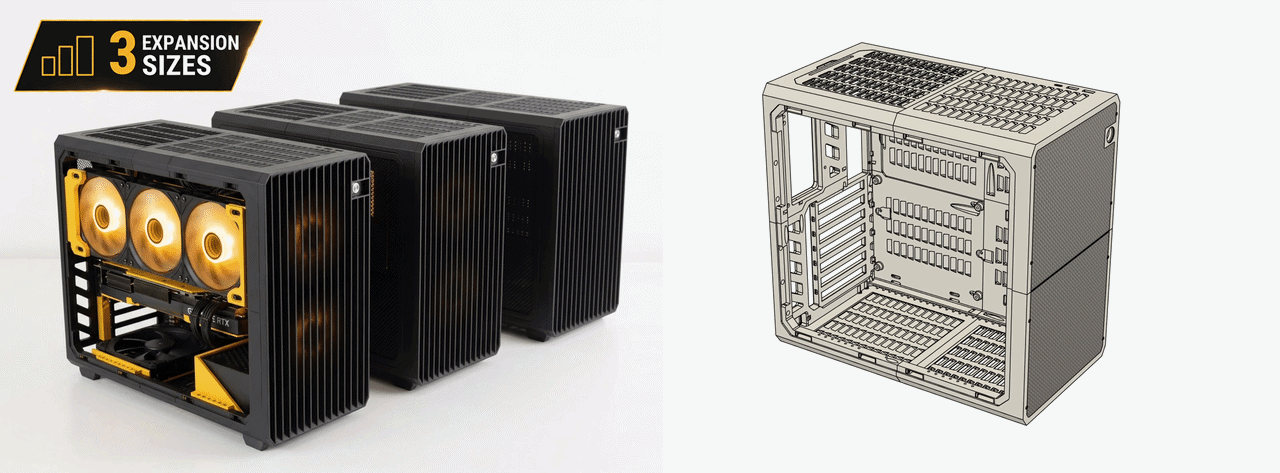

EXPANDABLE CHASSIS

Modular expansions let you fit more parts without compromise. Expansions bolt onto your existing chassis without needing to reprint the frame.

24L Standard Chassis: E-ATX to ITX · 337mm GPUs · 168mm CPU coolers · ATX / SFX / SFX-L PSUs · Radiators up to 280mm · Up to 10× 3.5″ drives

Expanded Chassis: Up to 450mm GPUs, 360mm radiators and 18× 3.5″ drives—with room to combine more hardware in one build.

For full specifications see bottom of page.

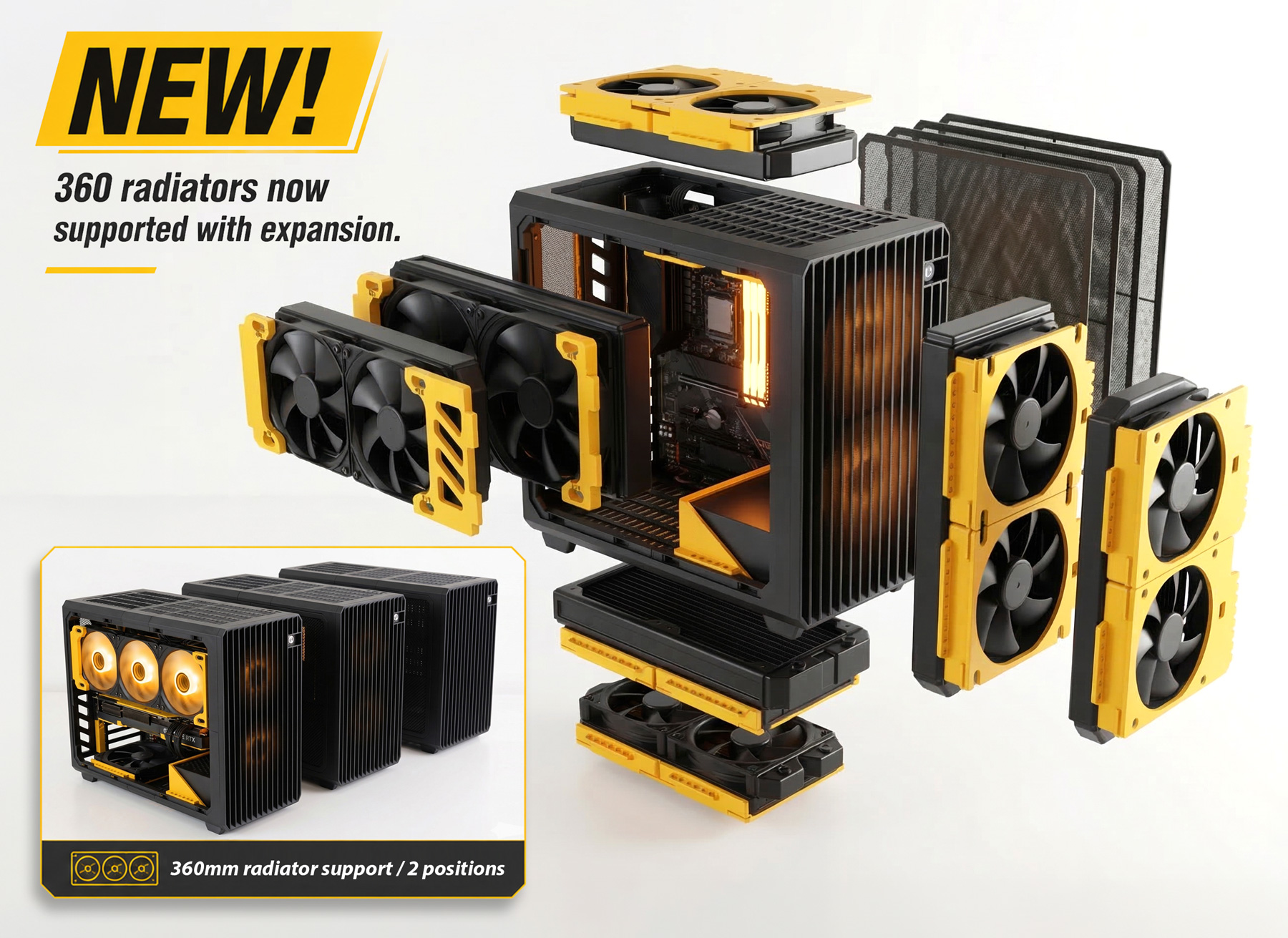

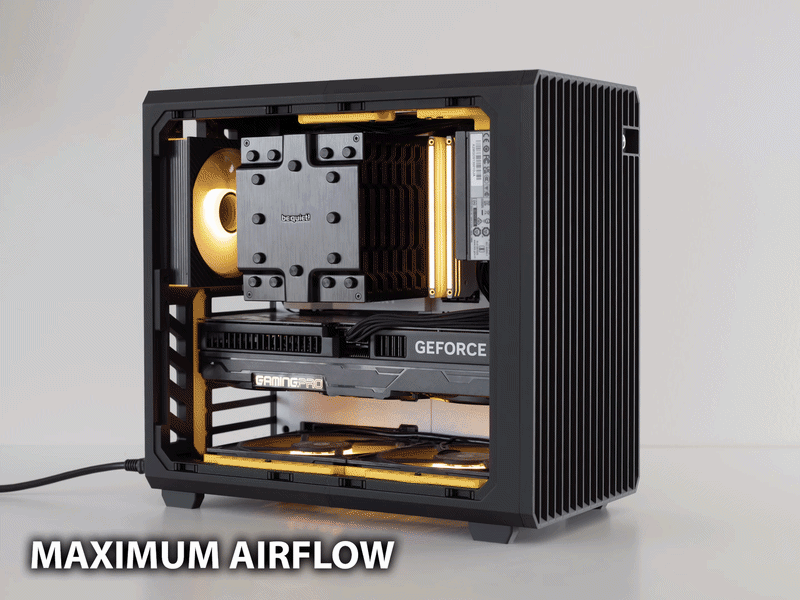

COOLING & AIRFLOW OPTIONS

Unlock total build freedom with more fan/radiator positions and new side panels

• Radiators up to 360mm with expansion
• Up to 13x 120mm fans or 7x 140mm fans
• 140mm Fan Mount - Multipurpose, it also mounts 280mm radiators anywhere on rails.

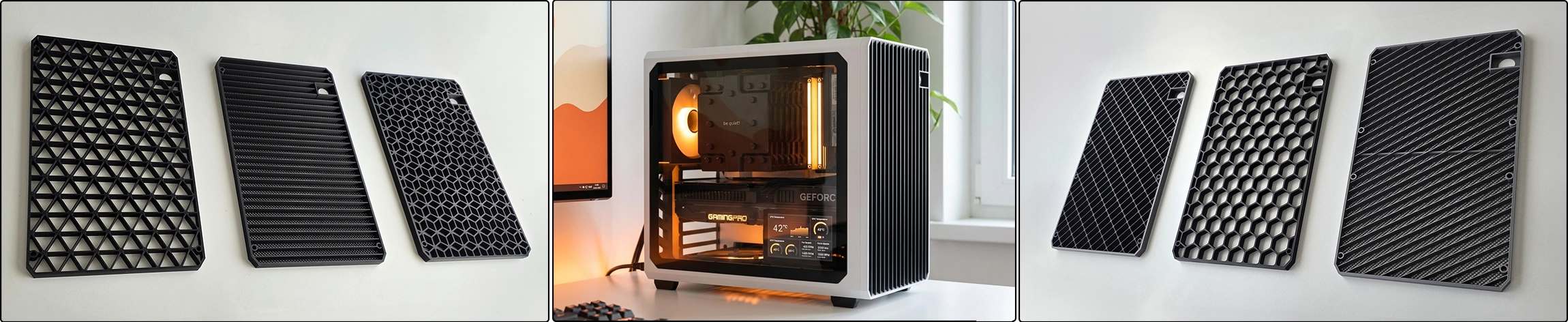

• High-Flow Side Panels - Collection of different thickness panels for premium filaments.

• Side Mounts - for 120 and 140mm fans, 240mm, 280mm and 360mm radiators.

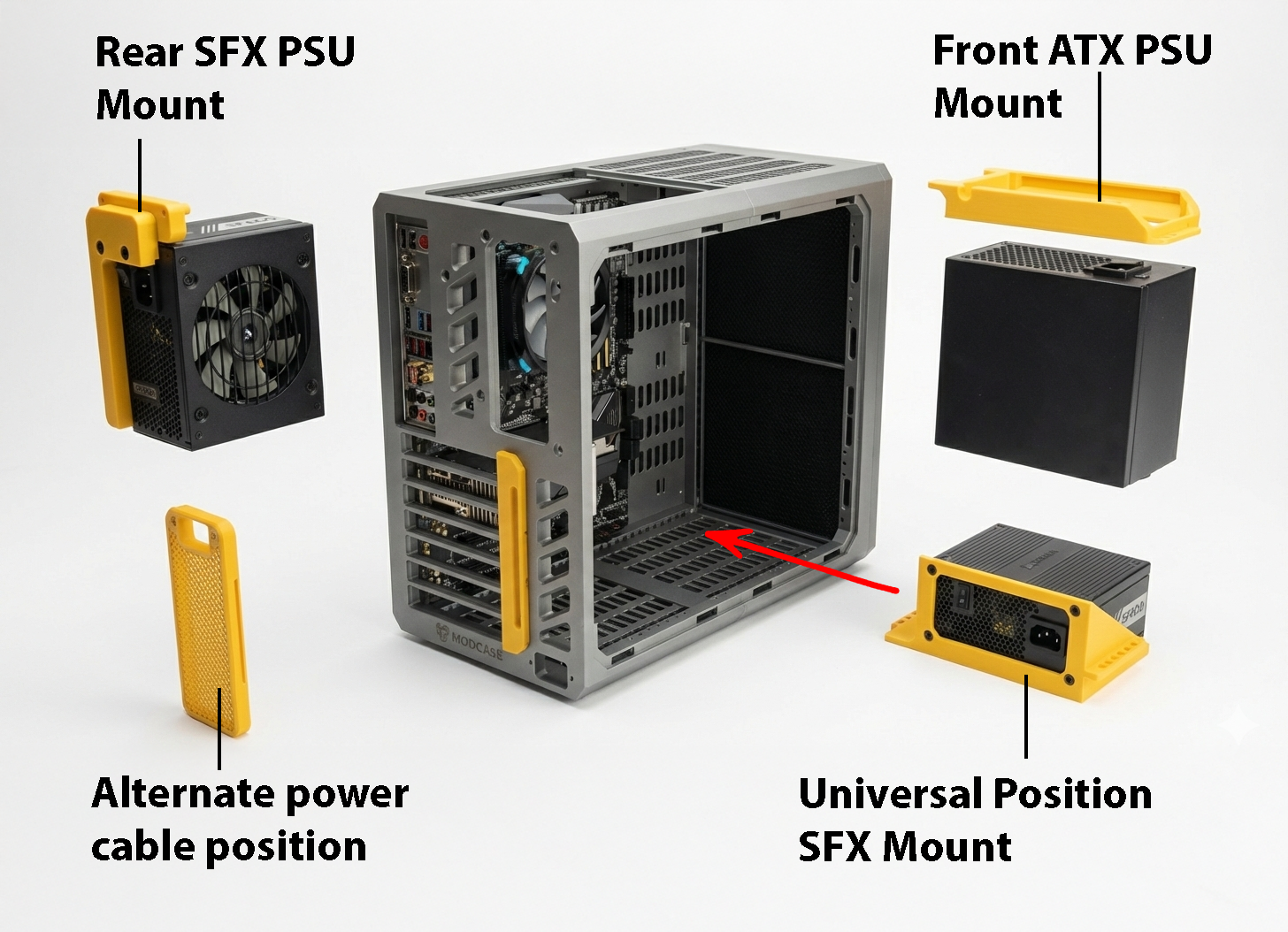

MORE PSU OPTIONS

Reposition your PSU to fit large coolers, long GPUs, and radiators without compromise.

• Front ATX PSU Mount - use ATX PSUs with tall CPU coolers
• Rear SFX Adapter - additional SFX position at the rear of the chassis
• Universal SFX mount - place SFX PSU anywhere on rails

• Rear Cover with Top Cable Exit - free up the entire bottom rail for component mounts.

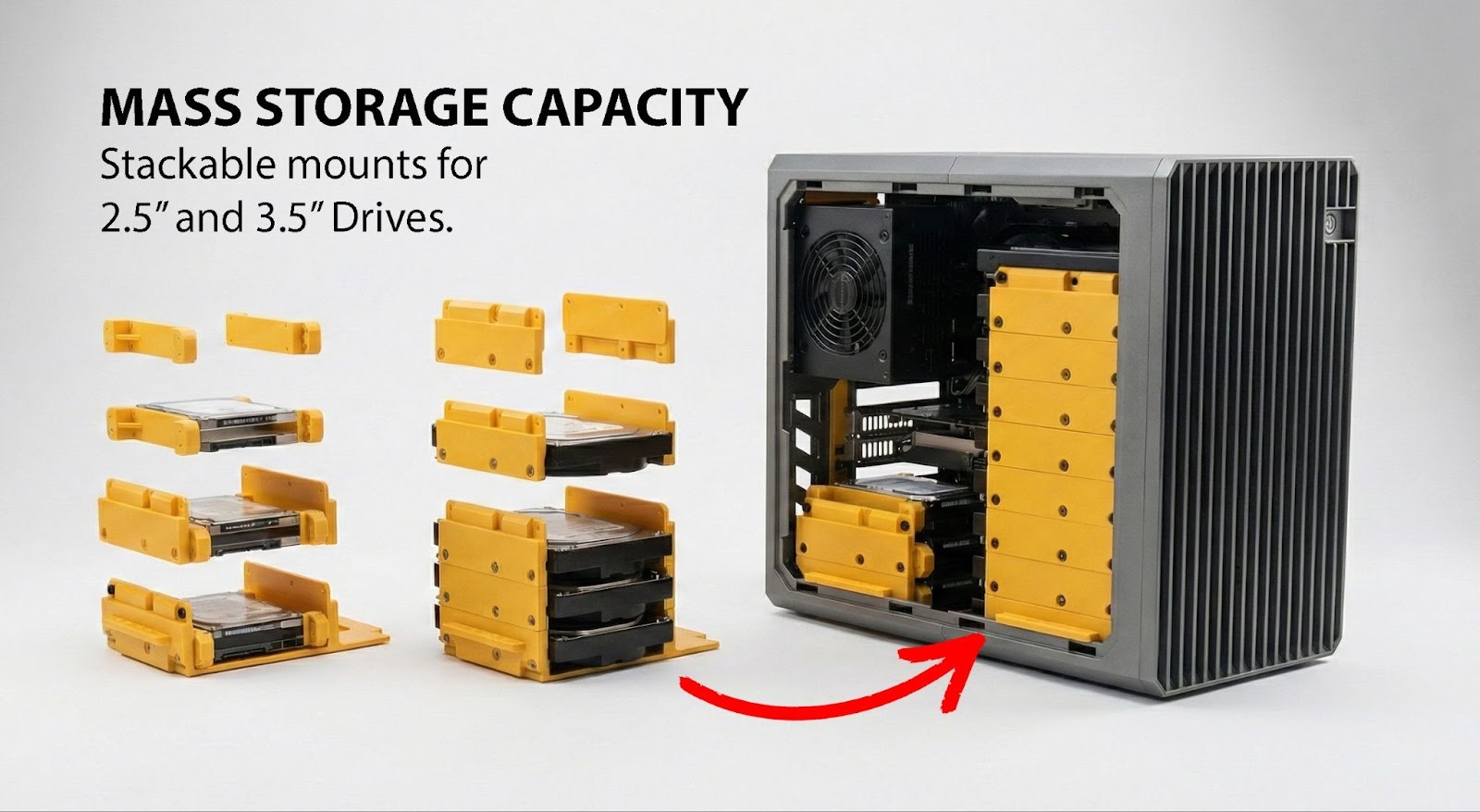

INCREASED DRIVE SUPPORT

Install up to 10x 3.5in Drives, or 18x 3.5in drives with expansion.

• Stackable 3.5” Drive Bays - Position drives anywhere on universal rails
• Stackable 2.5” Drive Bays - Fit 2x 2.5" SSDs in each 3.5” bay for ultra-dense storage

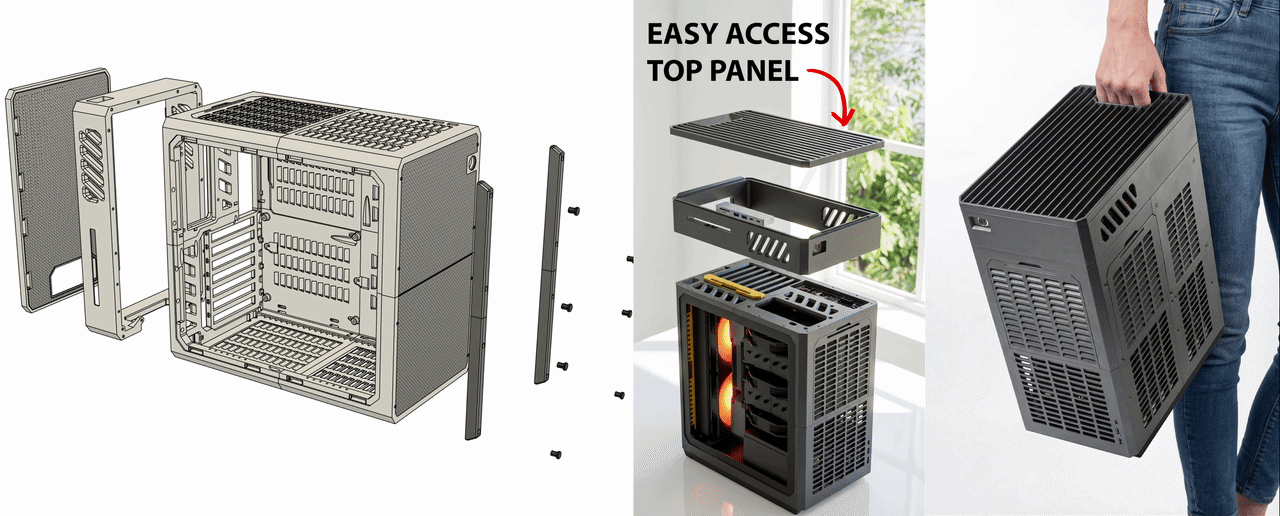

VERTICAL MODULE WITH CARRY HANDLE

Add a handle and use HYPER vertically for minimal footprint.

ADVANCED CUSTOMIZATIONS

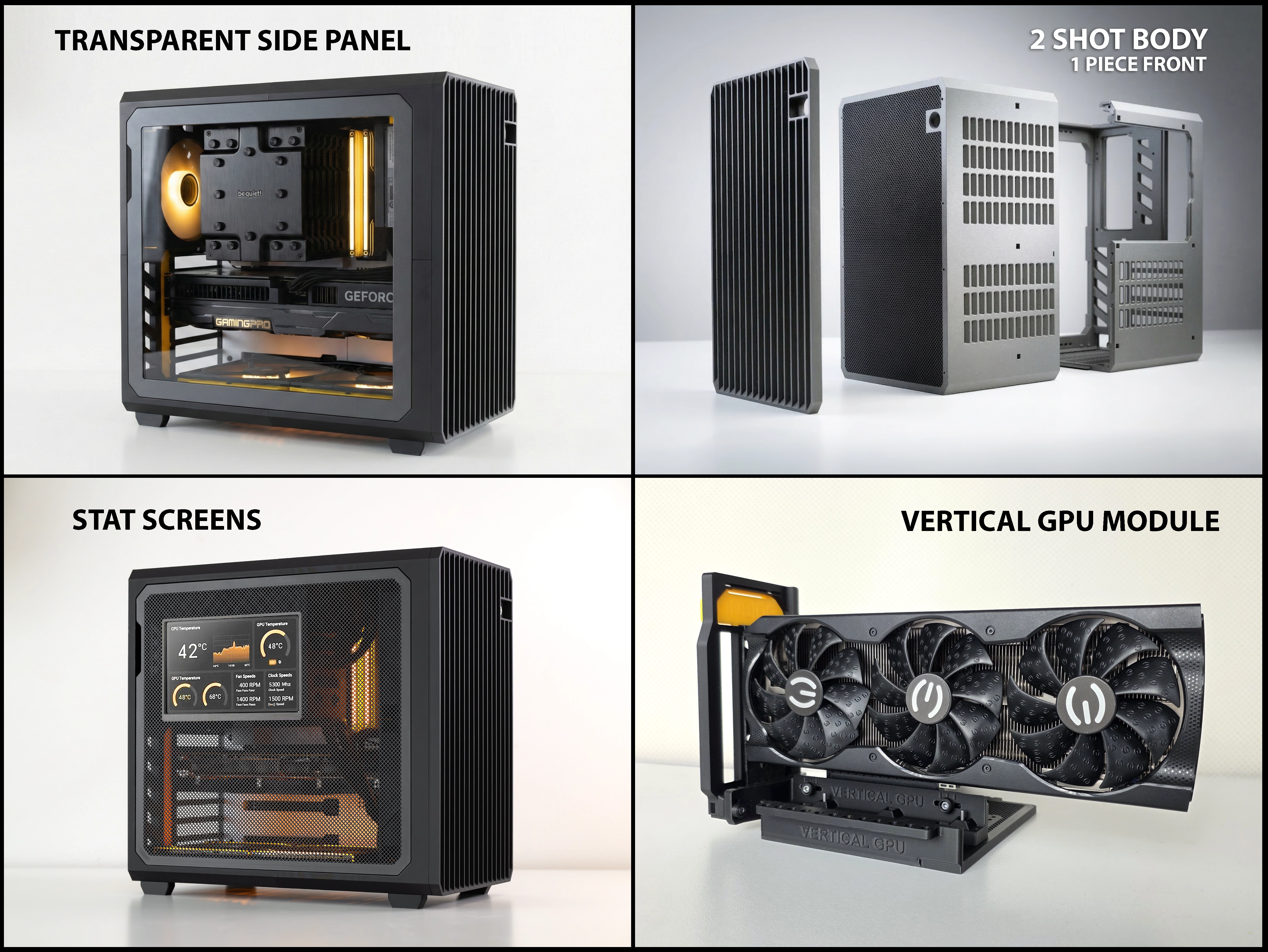

• Modular Front Plates — 7 styles to customize your case, plus CAD templates for making your own.
• Vertical GPU Module - Show off your GPU with a fully adjustable riser mount.


• Embedded Displays — optional side panels with 5", 7" and CAD adjustable screen mounts.
• Front Integrated Display — optional front frame with a 5″ stat-screen mount
• New 2-Part Frame for H2S and bigger printers.
• Transparent Side Panel - Frame for mounting see through materials.
• GPU support module - Rail-mounted or standalone support in three heights with soft TPU contact caps.

• Advanced Feet Pack - Multiple styles and heights for improved cooling.




7. SOURCE CAD (ULTIMATE TIER)

Customize everything - HYPER's source CAD include native Fusion 360 and STEP formats. Built using direct modelling, both formats provide the same creator-level access, with clean geometry for easy selection and editing.

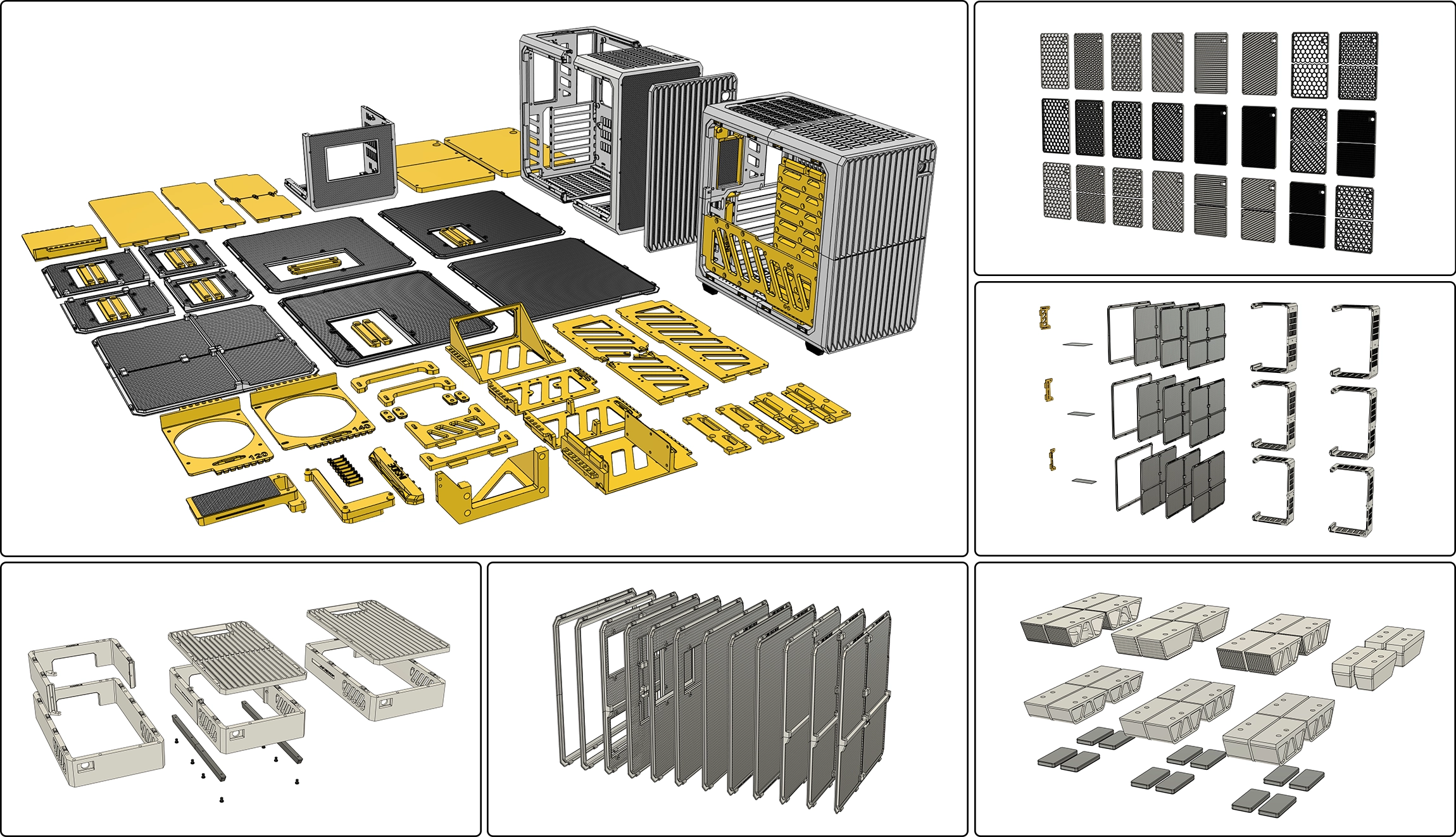

• Full CAD Assembly — Editable collection of the entire assembly.
• All Optional Parts — Every alternative module included in CAD form.
• CAD Blank Templates — Clean geometry, precision fit. The fastest way to create your own modules. Includes blanks for side rails, front plates, side panels, and fan mounts.


ALL UPDATES INCLUDED:
All tiers include stretch goals and updates such as case expansions, new modules and future refinements. Your HYPER will always be the latest version.

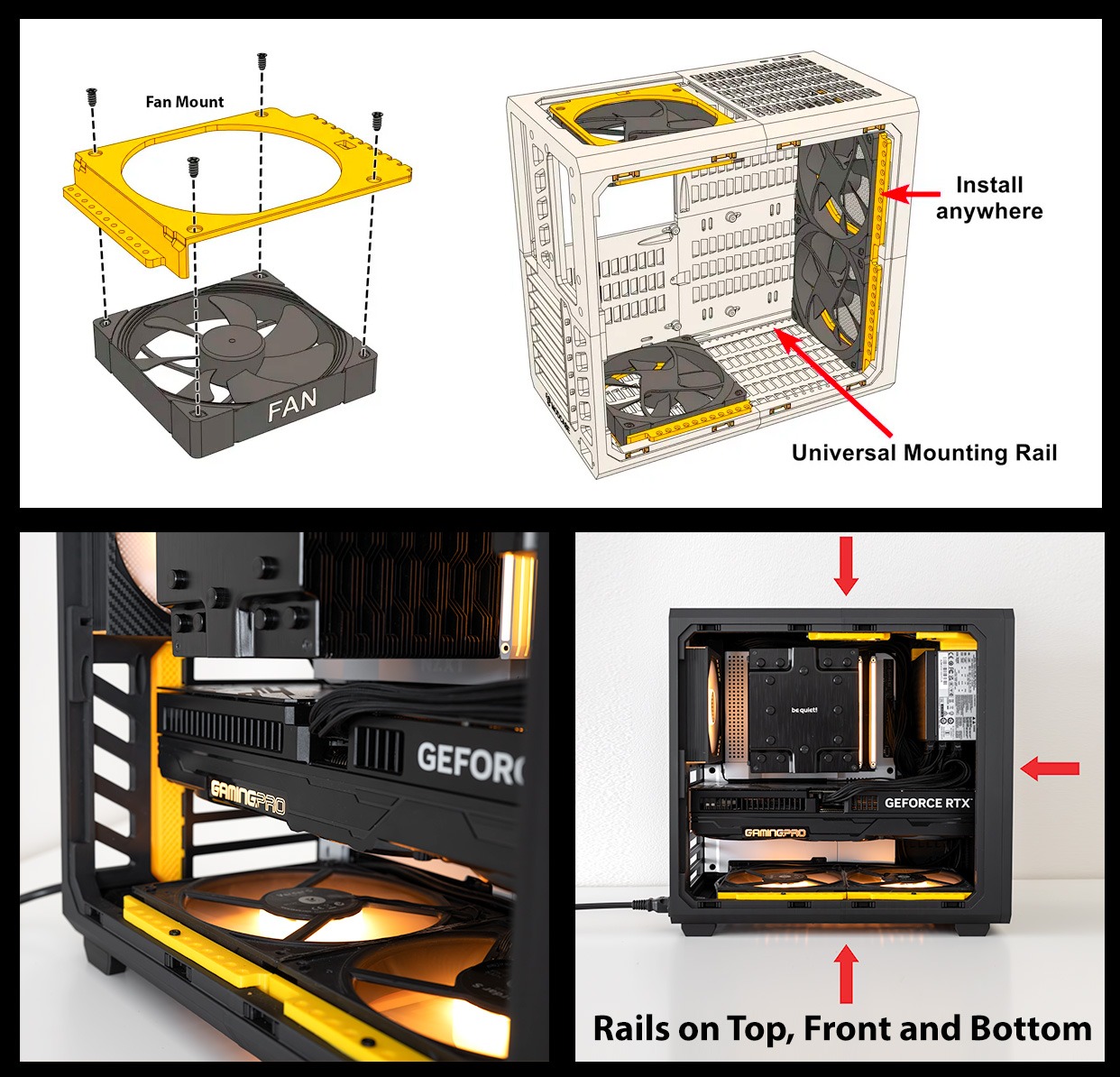

Universal Rail Mount System

Put PC accessories anywhere with a universal rail system on the Top, Bottom, Front of your case. You can opportunistically make use of extra space in your build.

Built on a Proven Chassis

HYPER is a 3rd generation MODCASE chassis — built on three years of refinement, validated by makers worldwide. Its long-term durability is proven through real-world deployment at scale.

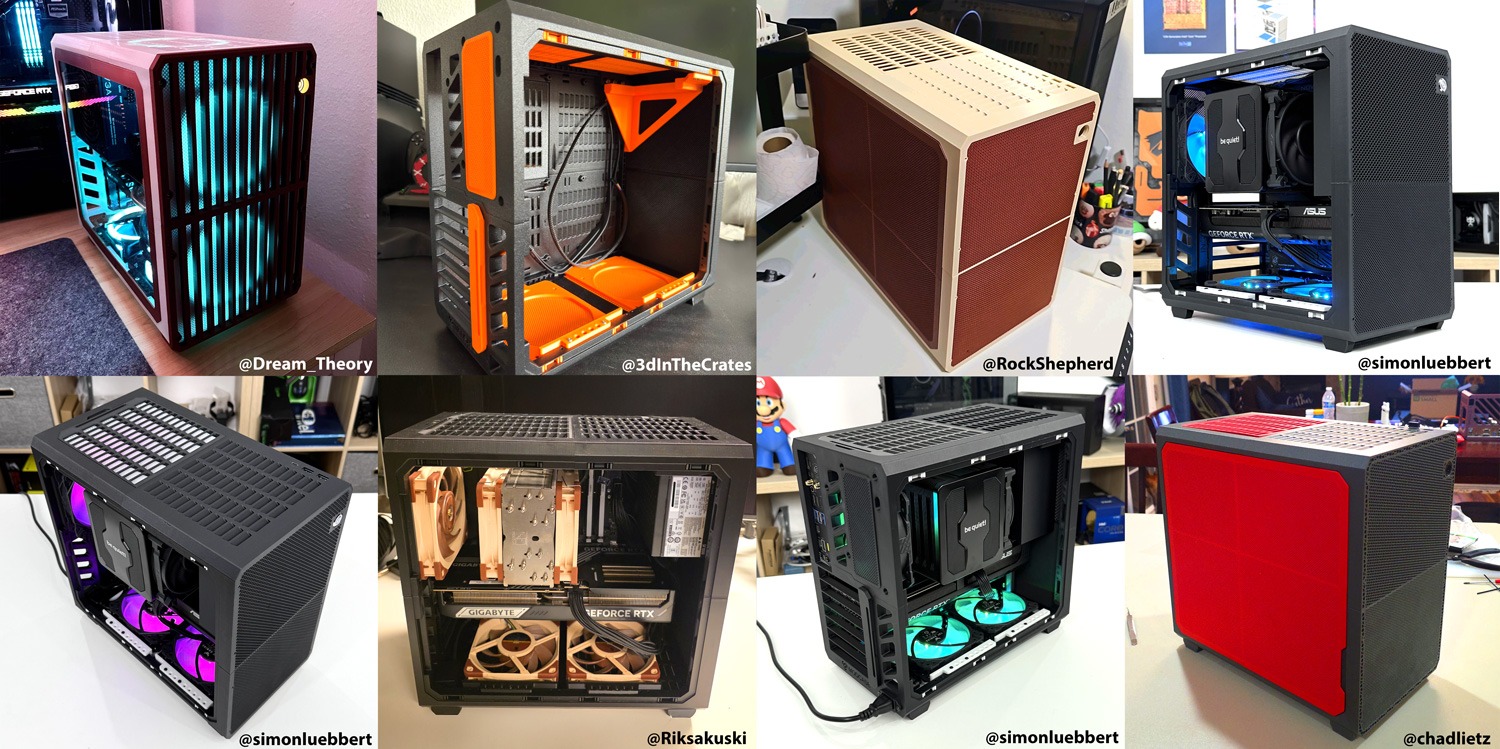

Want to try before you back?

Download the free version on Makerworld — All Premium models are cross compatible, no reprint.  Here's what users say:

⭐⭐⭐⭐⭐"How the hell is this a free project? If you ever do crowdfunding, I'll support you without a doubt." — @Ballache

⭐⭐⭐⭐⭐"My complete ATX PC fit without swapping any components. It's a shame you can't give more than 5 stars." — @Iknocks

⭐⭐⭐⭐⭐"I couldn't even find anything to buy that fit these specs. The only case I could find that fit in my IKEA cabinet — full ATX mobo, my 3070 AND a 240mm AIO. " — @schwepe

⭐⭐⭐⭐⭐"Exactly what I was looking for — most 3D printed cases only take micro boards or tiny GPUs. Fit my 9800x3D and 9070XT." — @Tech0verlord

⭐⭐⭐⭐⭐"Printed it more than 4 times and replaced all my spare PCs. Surprising strength despite how little material it uses." — @yamon

⭐⭐⭐⭐⭐ "Best I've seen in my 5 years. I'm simply impressed." — @Toyfactory3000

⭐⭐⭐⭐⭐"Found MODCASE in 2023. Printed an EVO, a MASS, and now HYPER. Can't wait for the paid version." — @chadlietz

SPECIFICATIONS

	24L Standard Chassis	Expanded Chassis
Dimensions	353 × 338 × 202mm	+80mm: 433×338×202mm +100mm: 453×338×202mm +120mm: 473×338×202mm
Motherboard	E-ATX / ATX / mATX / ITX
GPU Support	7-Slot · 337mm long · 168mm tall	450mm long
CPU Cooler	Up to 168mm
PSU	ATX / SFX / SFX-L
IO Ports	USB-C · 2 × USB-A
Radiators	120 / 140 / 240 / 280mm	Up to 360mm
Fans	10× 120mm or 6× 140mm fans	13× 120mm or 7× 140mm fans
Hard Drives	Up to 30× 2.5″ or 10× 3.5″	Up to 50× 2.5″ or 18× 3.5″
Dust Filters	Customisable mesh on all intakes

Required Printer & Materials (BOM)

• Printer:
  202×200×200mm Min. Volume for 4 Part Frame
  340x202x200mm for 2 Part Frame
• Filament: ~2.5kg - PETG Recommended. (no PLA)
• Screws: 40x BT3×20 Self-Tapping Screws (Link) One size for entire case build.
• Electronics: 16mm Power Button (Link), USB-A (Link)

• Optional: USB-C Cable (Link), Power Cable for front PSUs (Link)



COMMERCIAL LICENCE

Want to sell HYPER as physical printed units? The Commercial Version is a one-off payment lifetime license with print and CAD files included.

• Save Time: Minimal plate swaps and part count — less assembling, more shipping.
• Cost efficient: Optimized material usage. Single screw type, minimal non-printed parts. No complex BOM inventory.
• Competitive Advantage: Offer what metal cases can't — custom colors, materials, and stand out with modular differentiation on demand.
