MODCASE

EVOLUTION

EVOLUTION

Regular price $40.00 AUD
Regular price Sale price $40.00 AUD
Sale Sold out
Version

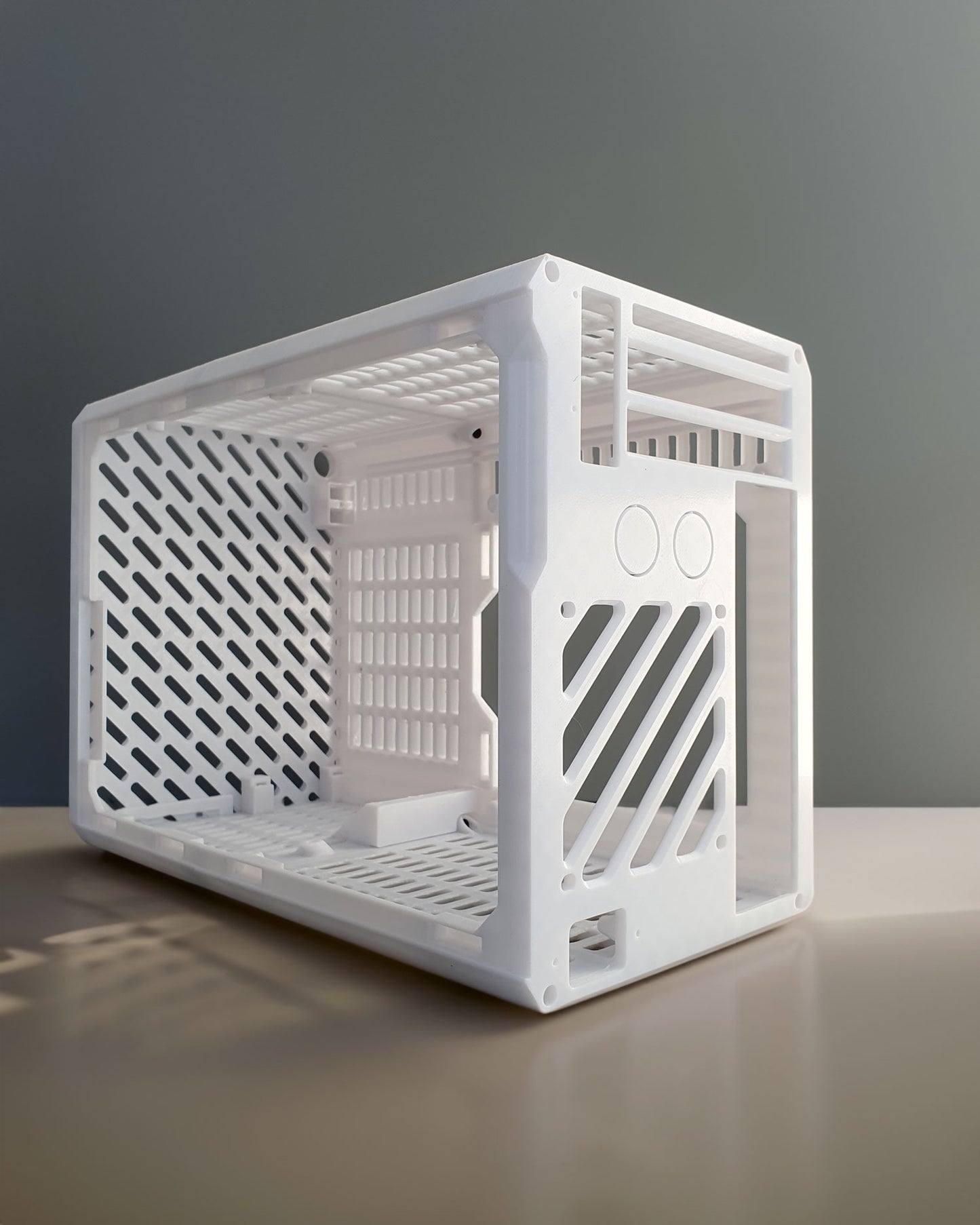

MODCASE Evolution is a fully 3D printable PC Case, refined and simplified for modern printers.

Print your dream case today from 4 included sizes, with limitless color options and modular customizations!

View full details

Simplicity Evolved

  • Minimum parts. Maximum strength.
  • Minimal screws. Simple assembly.
  • All tool-free panels for easy access.
  • High coverage ventilation on all 6 sides for unmatched airflow.
  • Easily customizable mesh and modular options included.

Evolution's engineered simplicity brings more features in less parts, and with less parts, it is more robust and easier to build than ever.

4 Sizes Included

Evolution digital PC Case can be printed in 4 sizes for the perfect fit:

EVO M-ATX (18.3L)
• For M-ATX or ITX Motherboards
• 4.75-Slot GPU, 340mm long
• SFX, SFX-L or ATX PSU
• Up to 2x 280mm radiators and 5 fans

EVO ITX-2 (13.6L) *NEW!*
• For ITX Motherboard
• Noctua NH-D15 support
• 3.75-Slot GPU, 329mm long
• SFX, SFX-L, ATX PSU
• Up to 240mm radiator and 5 fans

EVO ITX (11.9L)
• For ITX Motherboard
• 2.5-Slot GPU, 305mm long
• SFX, SFX-L PSU
• Up to 240mm radiator and 5 fans

EVO APU (3.7L)
• For ITX Motherboard
• SFX, SFX-L PSU

(See Full Specs at bottom of page.)

Benefits from the Future

Transcend physical case limits
Have your PC case in any color, with unlimited parts, and customize with modular options.

Advanced customizations made easy
Have the power to adjust your mesh panel's open rate with just one print setting!

EVO's mesh zones are independently adjustable, allowing you to set your mesh for extreme open airflow without affecting the rest of the structure.

Buy it now

Always up to date

Your EVO will always be the latest version. Get instant access to download the latest improvements and features with each update.

👉 New in V2.0: New ITX Case Size added and upgrades across the board
• New 'ITX2' model fits in 200x200x200mm build volume, supports 3.75 Slot GPUs and fits huge air coolers such as NH-D15!
• New MODs: integrated displays, new PSU and Drive mount options.

👉 New in V1.4: Vertical Base with Hub
• Added new bolt-on base to use EVO vertically for minimal foot print.

*See bottom of page for full update history.

Official CAD

EVOLUTION's powerful features are formed via direct modeling. You can move and update features by dragging or entering numbers.

Access its boundless potential with EVOLUTION CAD - a print ready collection of the entire CAD assembly plus all optional parts.

More than just a STEP export! This is the source file that gives you the same level of access as the creator. With meticulously clean geometry for easy selection and direct modelling.

No CAD expertise needed to edit many features. Read more on editable features here.

Get EVOLUTION CAD

Collapsible content

Required Hardware

  1. Screws: M3x20 (30pcs) - Link
  2. Power Button: Ø16mm -Link
  3. Power Cable: Angle Right -Link

    For optional hardware such as USB ports, see instructions here.

Printer Requirements

Filament: PETG Recommended. You need 1-2KG. Link

Minimum Bed Size:
APU - 180x180x180mm (2 Part frame)
mATX - 200x200x200mm (4 Part frame)
ITX2 - 200x200x200mm (4 Part frame)
ITX - 240x170x200mm (2 Part frame)

*Bed sizes are listed as Length x Width x Height.

Any printer meeting the above specs will work.
E.g. Bambulab A1, P1p, P1S, X1C, X1, Prusa Mk3s+, Mk4, Sovol SV01 pro, Creality K1

What's Included

EVO EVO + CAD
EVO mATX Print Files
EVO ITX Print Files
EVO ITX2 Print Files
EVO APU Print Files
Optional parts
EVO mATX - CAD Library
EVO ITX2 - CAD Library
EVO ITX - CAD Library
EVO APU - CAD Library
Optional parts - CAD Library

Full Specifications

  EVO mATX - 18.3L EVO ITX2 - 13.6L EVO ITX - 11.9L EVO APU - 3.7L
Size 352x272x191mm
1.5kg
341x252x191mm
1.3kg
320x225x166mm
1.1kg
305x179x68mm
0.5kg
GPU 4.75 Slots
340x165x96mm
3.75 Slots
329x165x75mm
2.5 Slots
305x140x51mm
N/A
Mother
Board
mATX, ITX
DTX
ITX ITX ITX
CPU
Cooler
163mm Max Height
(Fits NH-D15*)
163mm Max
(Fits NH-D15*)
135mm Max 49mm Max
Hard
Drives
8x2.5" or 3x3.5" 6x2.5" or 3x3.5" 4x2.5" or 2x3.5" N/A
IO Port USB-C, USB-Ax2 USB-C, USB-Ax2 USB-C, USB-Ax2 USB-C, USB-Ax2
PSU SFX, SFX-L
ATX up to 220mm
SFX, SFX-L
ATX up to 200mm
SFX, SFX-L SFX, SFX-L
Radiator Up to 2x 280mm Up to 240mm Up to 240mm N/A
Fans 4x 140mm
5x 120mm
2x 140mm
5x 120mm
4x 120mm
1x 92mm
N/A

*Noctua NH-D15 fits despite being 168mm at its tallest point.

Return to Description

👉 SFX PSU is recommended for dense builds. ATX PSU may restrict GPU length and large radiator compatibility. More details here.

Instructions

Update History

10Jun2024 - MODCASE EVO 2.0

NEW ITX model added and massive updates across the board!

🔥NEW 4-split ITX Model (ITX2):
- Fits Noctua NH-D15
- Fits other CPU coolers up to 163mm
- Fits in 200x200x200mm build volume!
- 3.7-Slot GPU support (329mm Long, 165mm Tall)
- Larger Fan Support on top (2x140) and rear (120)
- ATX PSU Support
*Yes NH-D15 fits despite being 168mm at its tallest point.

🔥M-ATX Model updates:
- Fits Noctua NH-D15
- Fits other CPU coolers up to 163mm
- Fixed ATX PSU bracket cable clearance issue for some PSUs
- New vertical base with rear Power Cable relocation for large air cooler compatibility
- New cable strap loop for PSU cable area
- Minor geometry refinements
*Larger CPU coolers now fit due to the new vertical Base_B, which has relocation option for the PSU cable. You do not need to reprint anything else.

🔥ITX Model updates:
- New single body vertical base options
- New cable strap loop for PSU cable area
- Minor geometry refinements

🔥Custom MODs added. Originally excluded from public releases, these are some of the one-off requests and more advanced mods which may not apply for everyone.
- [MATX and ITX2] new SFX PSU mount with dual 2.5" drives support
- [MATX, ITX2] 5inch and 7inch Side Panel display mod
- [ITX] 5inch Side Panel display mod
- [MATX and ITX2] Optional ATX PSU mount for taller right angle cables.


►1 Mar 2024
 - MODCASE EVO 1.4

Vertical EVOLUTION has arrived!

- New bolt-on Vertical Base mod added
- Optional USB hub mount for vertical base
- Optional mATX frame without USB-C
- CAD updates (new base and frame_Ft models added, dissolved duplicated features, grouped components and general cleanup)


►29 Nov 2023
 - MODCASE EVO 1.3

*NEW* Evolution 3.7L APU model added!
- New min 180*180mm Bed size support for APU.
- ITX updated side vent and PSU mount print quality. (Frame_F)
- ITX added USB-C front IO
- MATX now has new direct mount USB-C (Frame_FT)


►16 Oct 2023
- MODCASE EVO 1.2

*NEW* Evolution mATX model
- Dual 280mm Radiator support
- USB-C support- ATX PSU support
- mATX motherboard support- 6x 2.5" or 3x 3.5" drives support
- Tool-less GPU retainer
- More removable internal mesh options
- More bed size compatibility, min 200*200mm.

Get Evolution. Experience the Future Today

MODCASE Evolution brings 3D Printed PC cases to the mainstream with its robust simplicity, easy assembly and endless customizations. Print yours today and enjoy next gen features now!
