HYPER — Build Any PC, One Case

Design Highlights

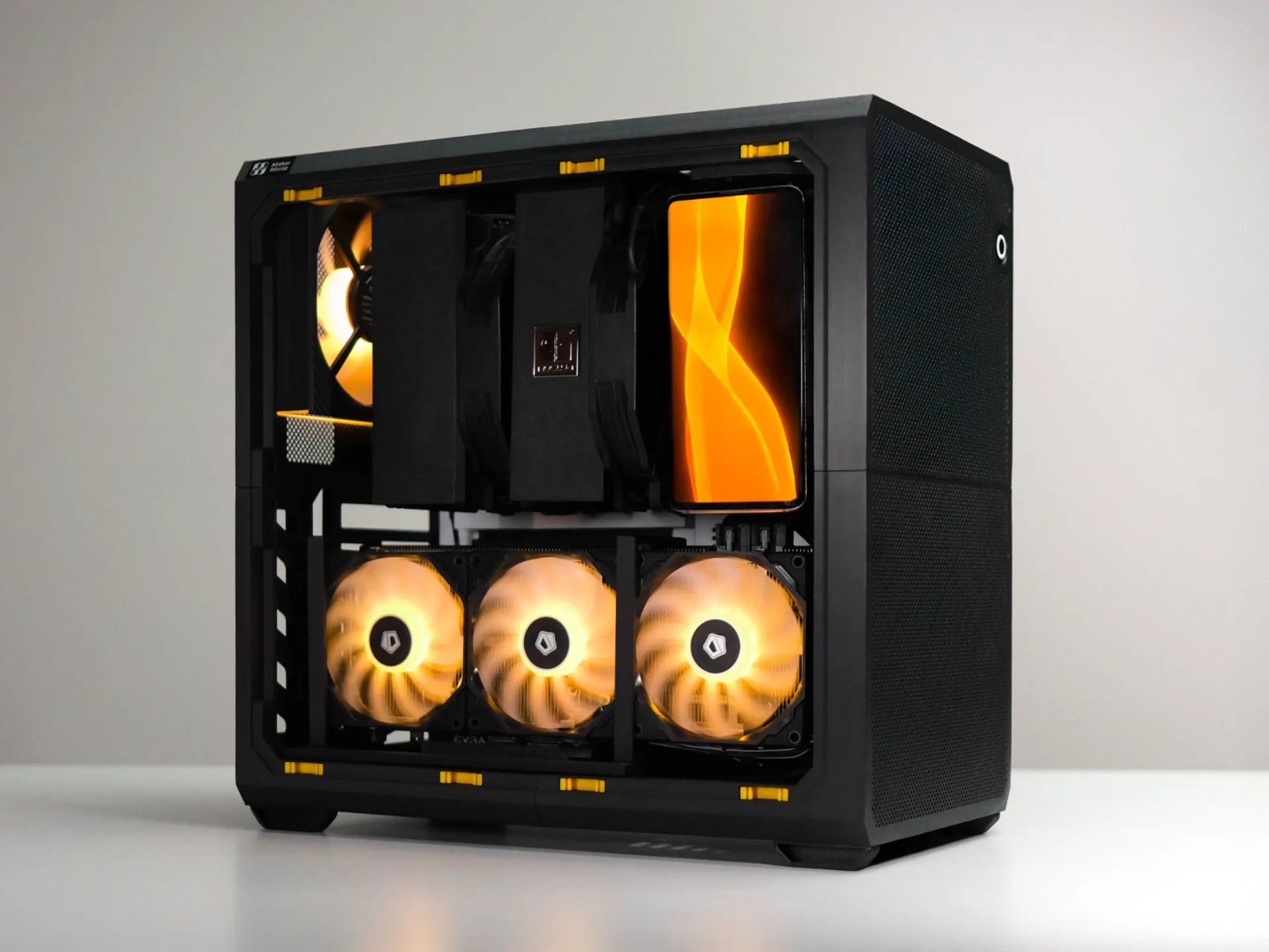

1. Flagship Hardware Fit - E-ATX to ITX. 450mm GPUs. 168mm coolers (NH-D15 confirmed). 360mm Radiators, ATX, SFX / SFX-L PSUs.

2. Simple BOM - 2.5kg of PETG, screws, USB ports, and a power button. That's it.

3. Formed, Not Assembled - Frame prints in 2 parts, not 20 — easy build, fewer joints, stronger structure. (4 parts for standard size printers)

4. Modular Flexibility - Build a NAS, a liquid cooling gaming rig, or a hybrid Workstation in between. Universal modules make it all possible within the same chassis.

5. Your Printer Does the Work - Interlocking joints and compliant mechanisms replace complex assembly. Single screw type throughout (BT3×20). Per-model tuned print files and instructions included.

HYPER is the most advanced MODCASE to date — bigger builds, expandable construction, and more ways to configure than ever before.

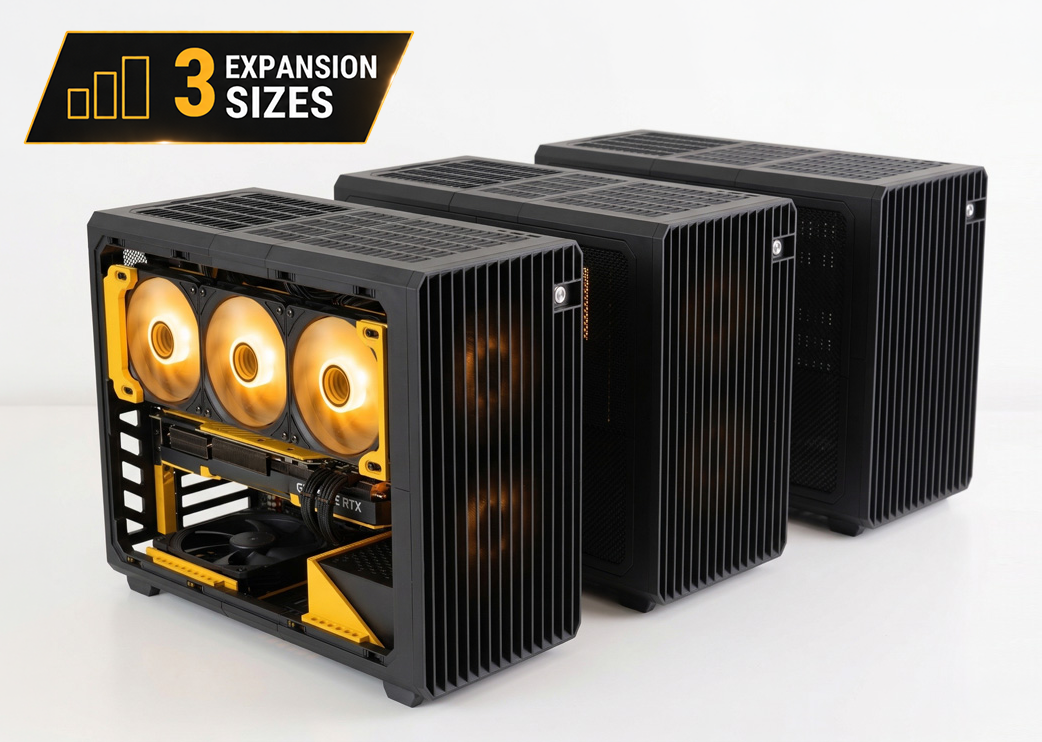

Expandable Chassis

Modular expansions let you fit larger components and combine more hardware in the same build. Expansions bolt onto your existing chassis without needing to reprint the frame.

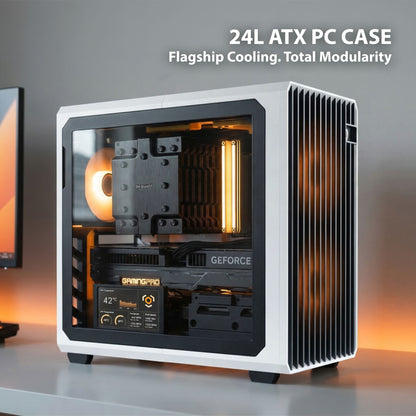

24L Standard Chassis:
E-ATX to ITX · 337mm GPUs · 168mm CPU coolers · ATX / SFX / SFX-L PSUs · Radiators up to 280mm · Up to 10× 3.5″ drives

Expanded Chassis:
Up to 450mm GPUs, 360mm radiators and 18× 3.5″ drives—with room to combine more hardware in one build.

For full specifications see bottom of page.

Cooling Without Compromise

Configure HYPER for air cooling, AIOs or custom loops with modular mounts throughout the chassis.

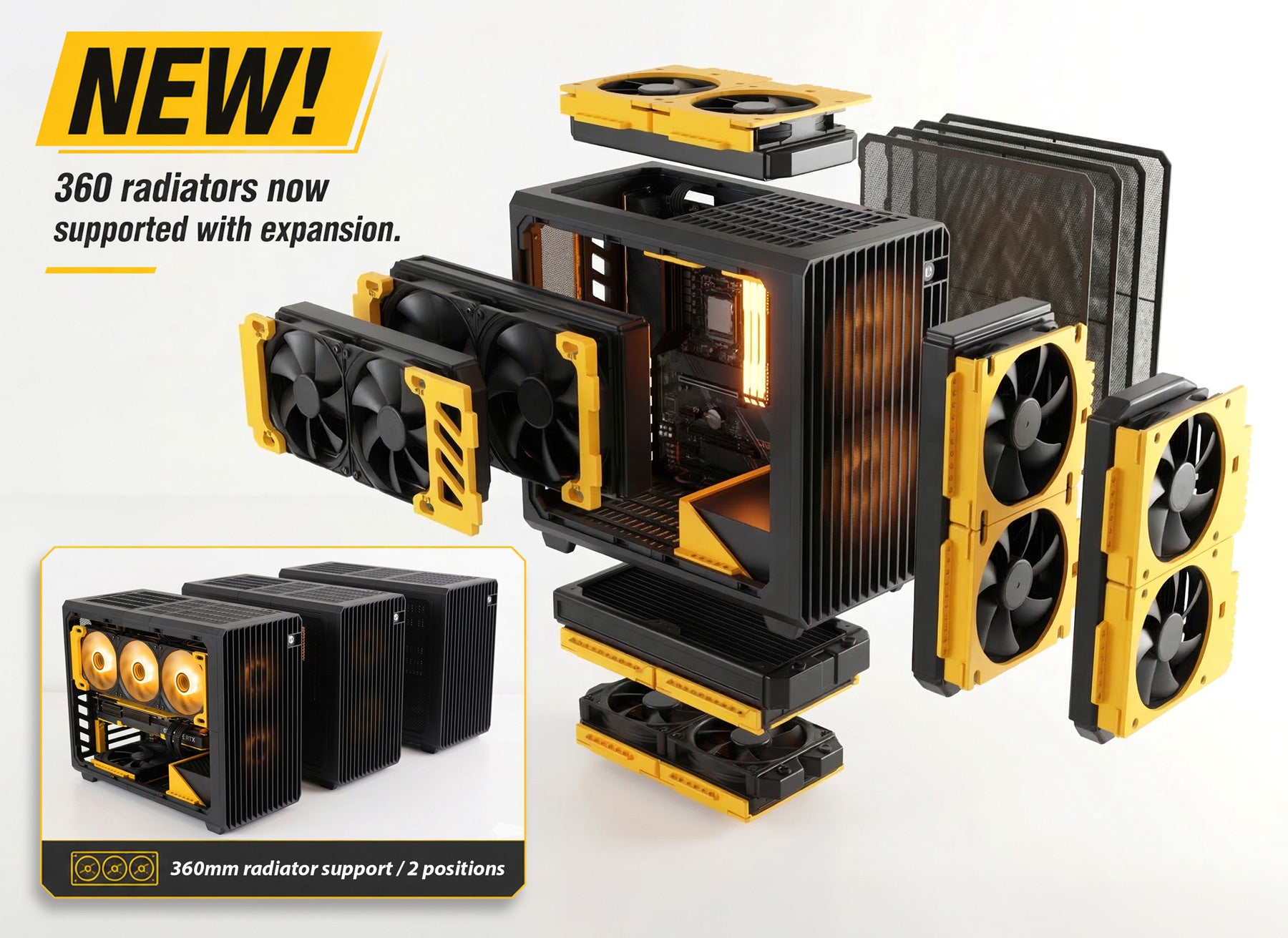

Radiators: 120 / 140 / 240 / 280mm · 360mm with expansion
Fans: Up to 13 × 120mm or 7 × 140mm with expansion

• Modular Cooling Mounts — Position fans and radiators along the top, front and bottom rails.
• Side Mounts — Supports 120mm and 140mm fans, plus 240mm, 280mm and 360mm radiators.

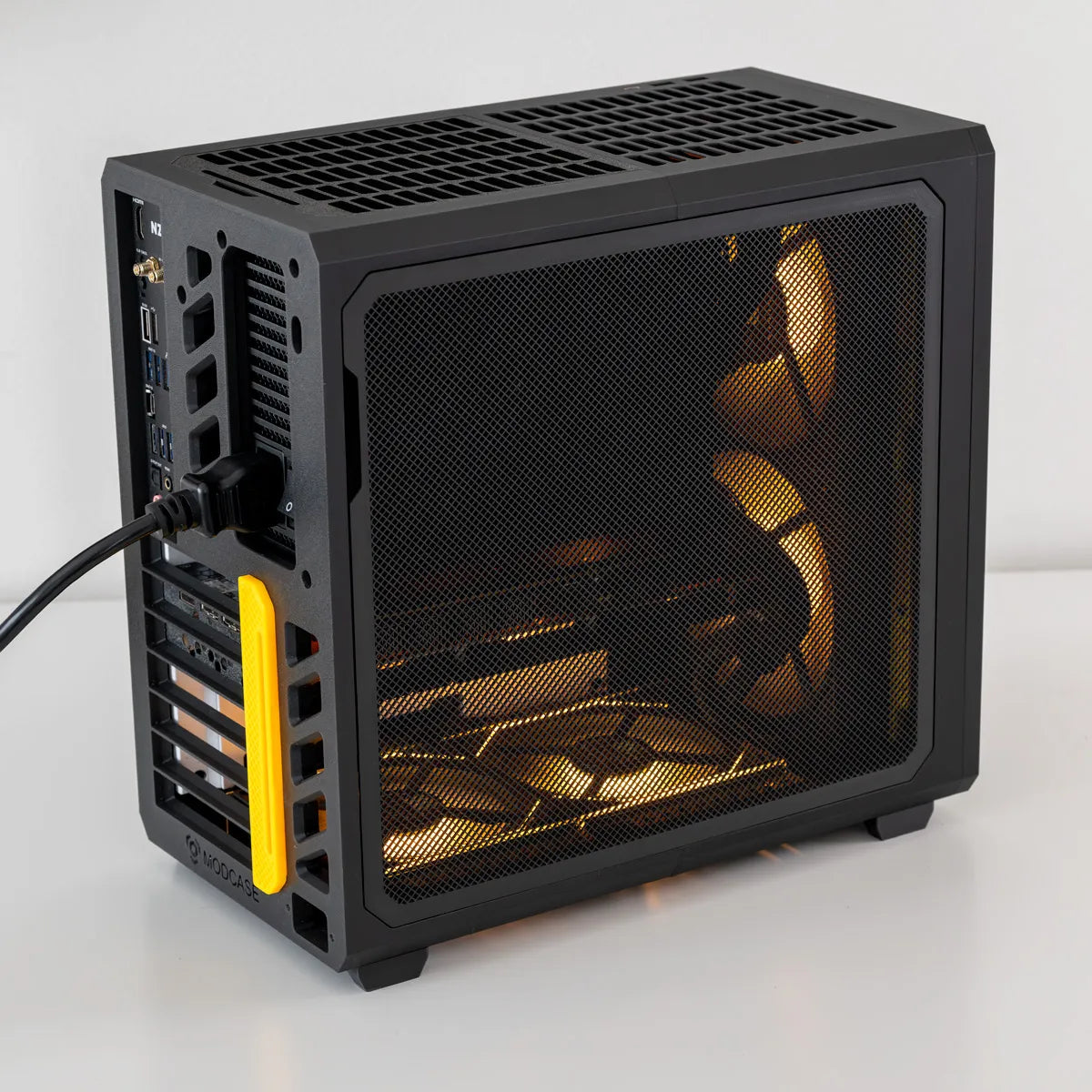

• High-Flow Side Panels — Multiple mesh thicknesses for airflow, visibility and rigidity.

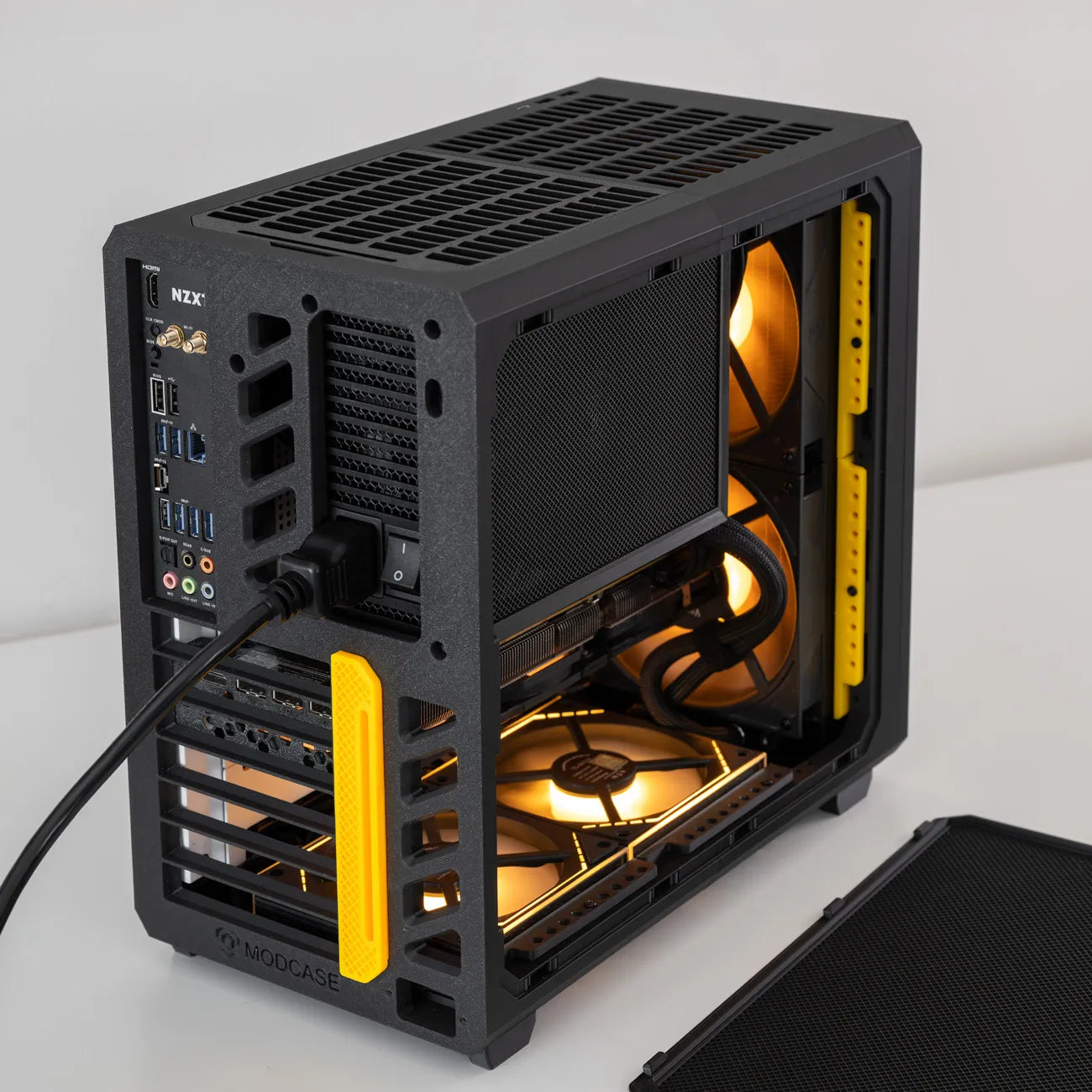

PSU Freedom

Reposition your PSU to fit large coolers, long GPUs, and radiators without compromise.

• Front ATX PSU Mount - use ATX PSUs with tall CPU coolers
• Rear SFX Adapter - additional SFX position at the rear of the chassis
• Universal SFX mount - place SFX PSU anywhere on rails
• Rear Cover with Top Cable Exit - free up the entire bottom rail for component mounts.

Massive Storage Capacity

Install up to 10x 3.5" Drives, or 18x 3.5" drives with expansion.

• Stackable 3.5” Drive Bays - Position drives anywhere on universal rails
• Stackable 2.5” Drive Bays - Fit 2x 2.5" SSDs in each 3.5” bay for ultra-dense storage

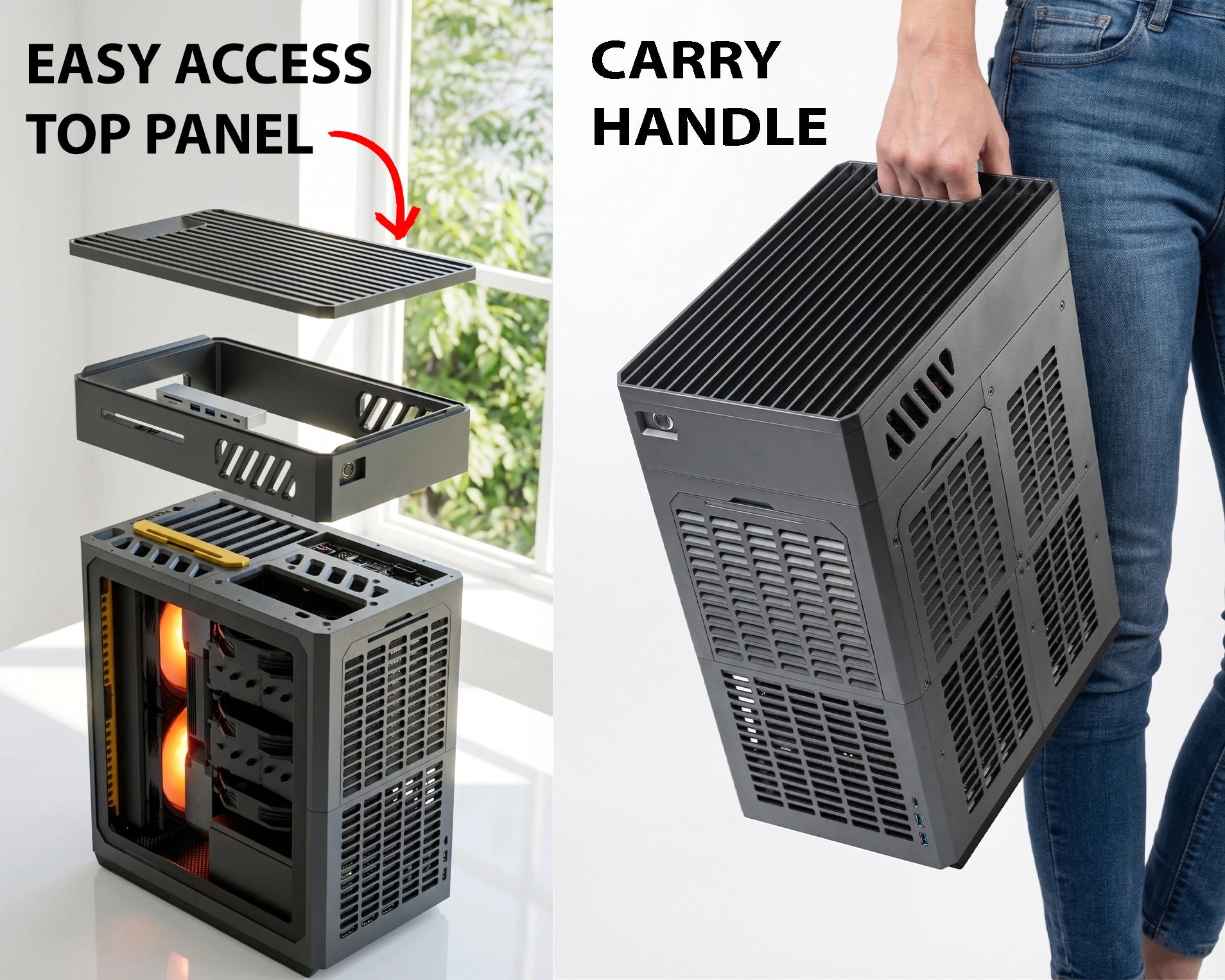

Vertical Module with Carry Handle

Add a handle and use HYPER vertically for minimal footprint.

Advanced Customisations

• Modular Front Plates — 7 styles to customise your case, plus CAD templates for making your own.

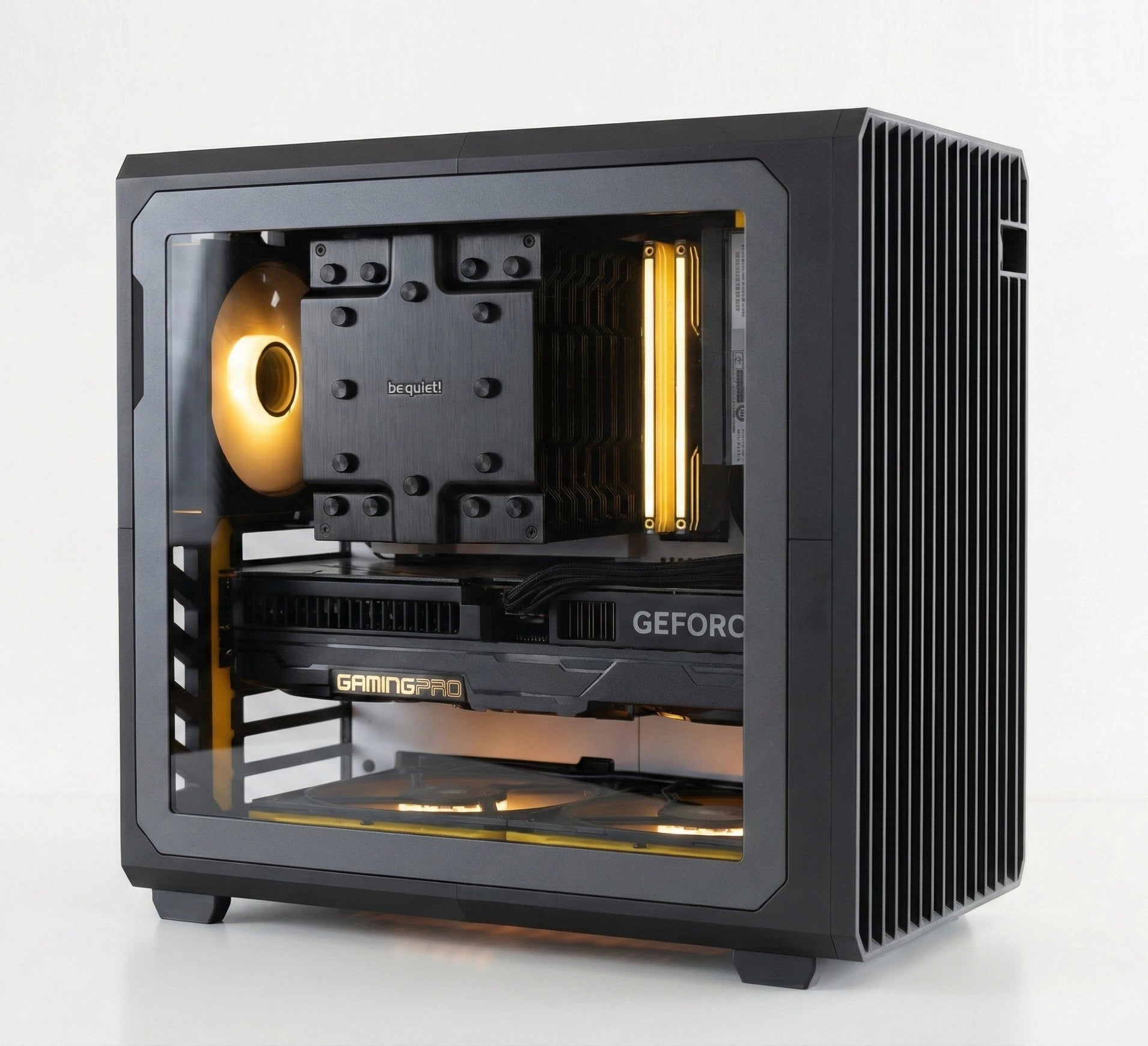

• Transparent Side Panel - Frame for mounting see through materials.

• Vertical GPU Module - Show off your GPU with a fully adjustable riser mount.


• Embedded Displays — 5″ and 7″ side-panel mounts, customisable to other sizes via CAD in Ultimate and Commercial.

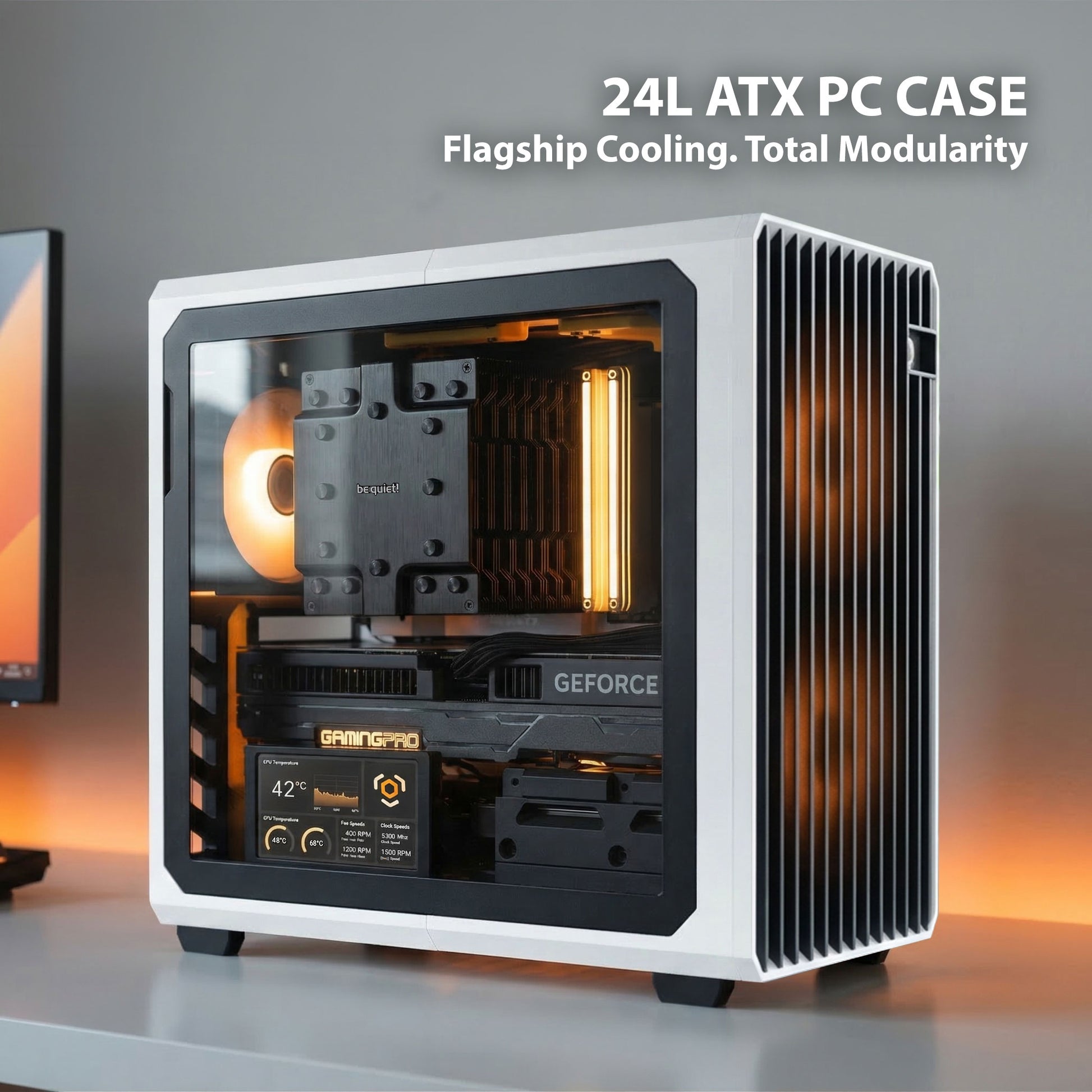

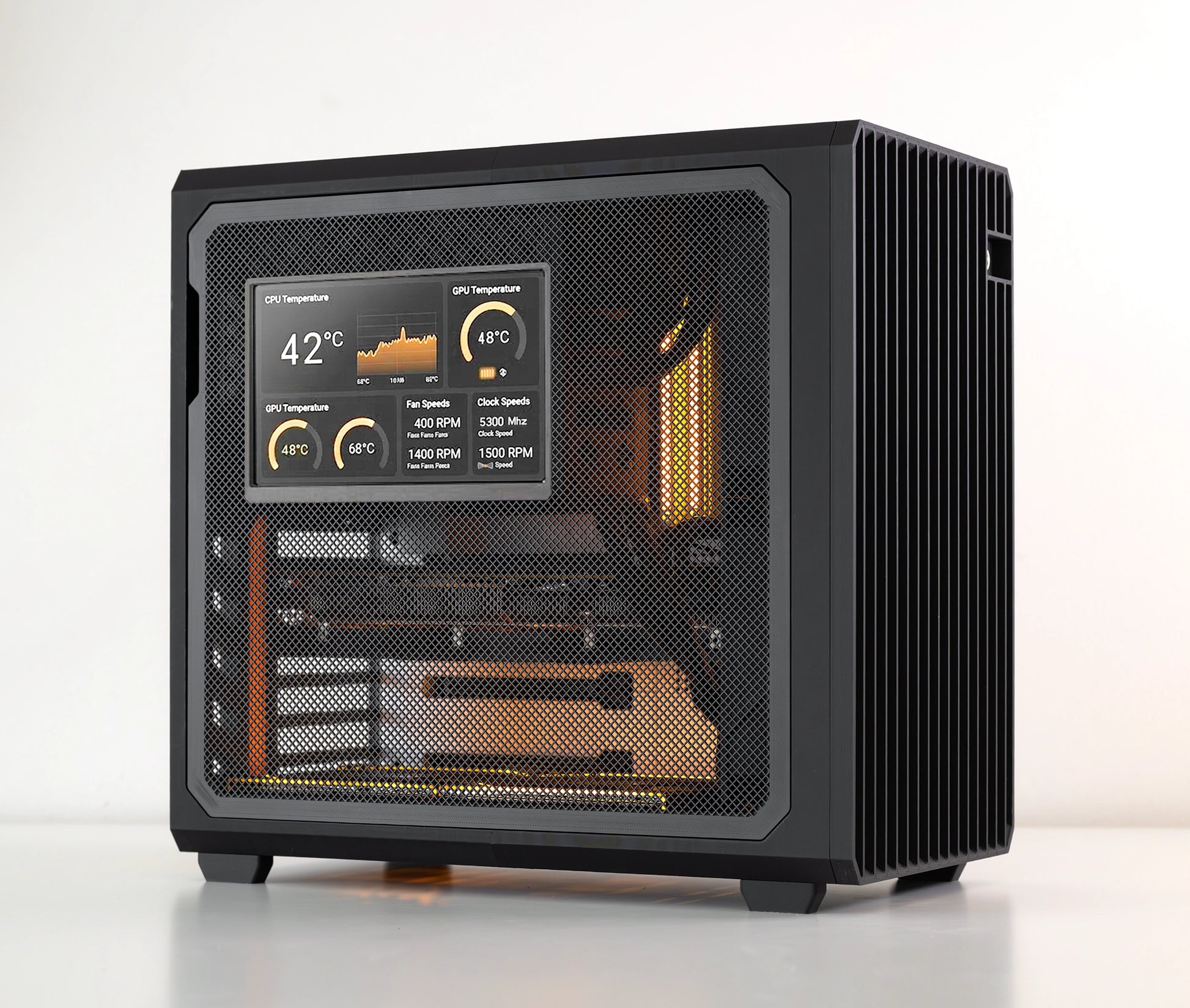

• Front Integrated Display — optional front frame with a 5″ stat-screen mount

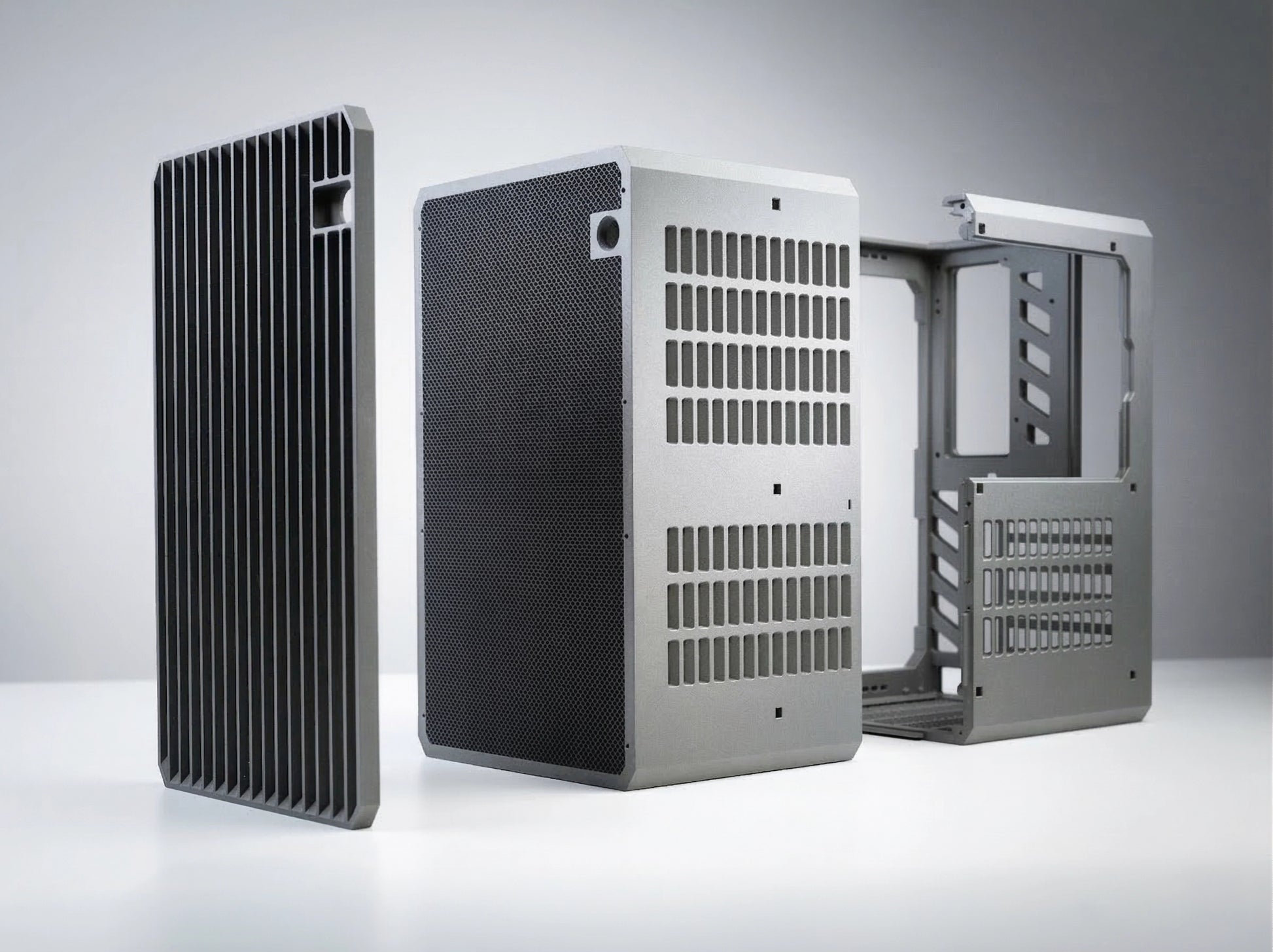

• 2-Part Frame for H2S and bigger printers.
• GPU support module - Rail-mounted or standalone support in three heights with soft TPU contact caps.
• Advanced Feet Pack - Multiple styles and heights for improved cooling.

Source CAD (Ultimate & Commercial Versions)

Customise everything:

• Full CAD Assembly — Editable collection of the entire assembly.
• All Optional Parts — Every alternative module included in CAD form.
• CAD Blank Templates — Clean geometry, precision fit. The fastest way to create your own modules. Includes blanks for side rails, front plates and fan mounts.


File formats:

• STEP Format — Created through direct modelling, HYPER's step files are compatible with all CAD programs and provide full functionality just like the native f3d format.
• Fusion 360 (.f3d) — Native format provides easier file loading for Fusion 360 users.


Always Up to Date

Every HYPER version includes future updates such as new compatible modules, print-file improvements and ongoing refinements. Ultimate and Commercial also receive updated source CAD files. Your HYPER will always be the latest version.

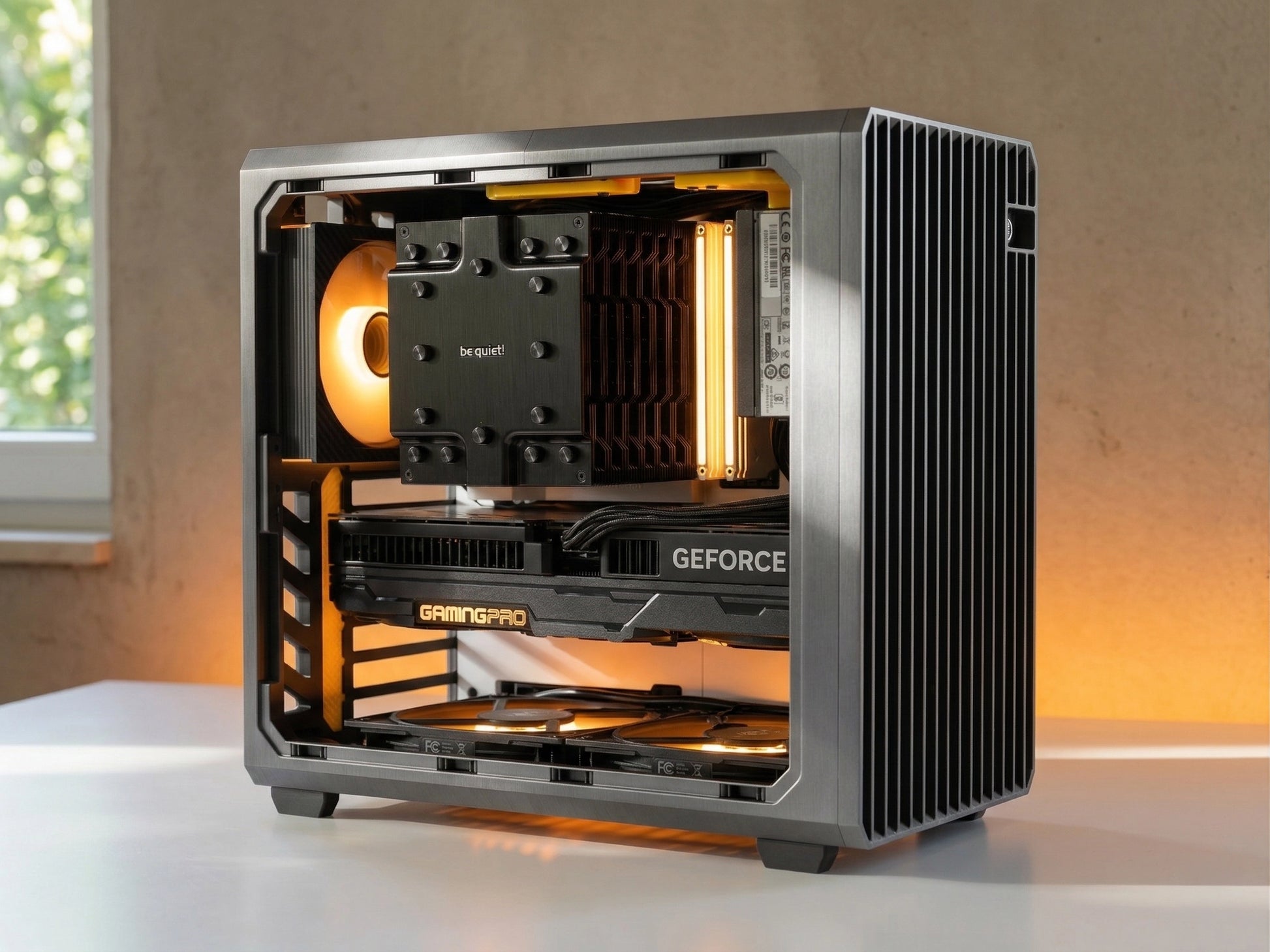

Compare HYPER Versions:

Commercial Licence

Turn HYPER into a distinctive, higher-value product for your print business. The Commercial Tier is a one-off payment for a lifetime licence to sell printed physical HYPER units.

• Save Time: Minimal plate swaps and part count — less assembly, more shipping.
• Cost Efficient: Optimised material usage. Single screw type, minimal non-printed parts. No complex BOM inventory.
• Competitive Advantage: Offer what metal cases can’t—custom colours, materials and modular differentiation on demand.

Universal Rail Mount System

Put PC accessories anywhere with universal rails running along the top, bottom and front of the case. Opportunistically make use of extra space in your build.

Built on a Proven Chassis

HYPER is a 3rd generation MODCASE chassis — built on three years of refinement, validated by makers worldwide. Its long-term durability is proven through real-world deployment at scale.

Want to try before you buy?

Try the basic free version on Makerworld — all HYPER parts are cross-compatible between the free and paid versions, so you can upgrade without reprinting parts.

⭐⭐⭐⭐⭐"My complete ATX PC fit without swapping any components. It's a shame you can't give more than 5 stars." — @Iknocks

⭐⭐⭐⭐⭐"I couldn't even find anything to buy that fit these specs. The only case I could find that fit in my IKEA cabinet — full ATX mobo, my 3070 AND a 240mm AIO. " — @schwepe

⭐⭐⭐⭐⭐"Exactly what I was looking for — most 3D printed cases only take micro boards or tiny GPUs. Fit my 9800x3D and 9070XT." — @Tech0verlord

⭐⭐⭐⭐⭐"Printed it more than 4 times and replaced all my spare PCs. Surprising strength despite how little material it uses." — @yamon

⭐⭐⭐⭐⭐ "Best I've seen in my 5 years. I'm simply impressed." — @Toyfactory3000

⭐⭐⭐⭐⭐"One of the best, most useful things I have printed. Happy to be a supporter." — @user_409379510

Specifications

Required Printer & Materials (BOM)

• Printer:
  202×200×200mm Min. Volume for 4 Part Frame
  340×202×200mm for 2 Part Frame
• Filament: ~2.5kg — PETG Recommended. (No PLA)
• Screws: 40× BT3×20 Self-Tapping Screws (Link). One size for the entire case build.
• Electronics: 16mm Power Button (Link), USB-A (Link)
• Optional: USB-C Cable (Link), Power Cable for front PSUs (Link)

Instructions

Assembly and module guides are available in the HYPER online manual.

View HYPER Instructions
